Description

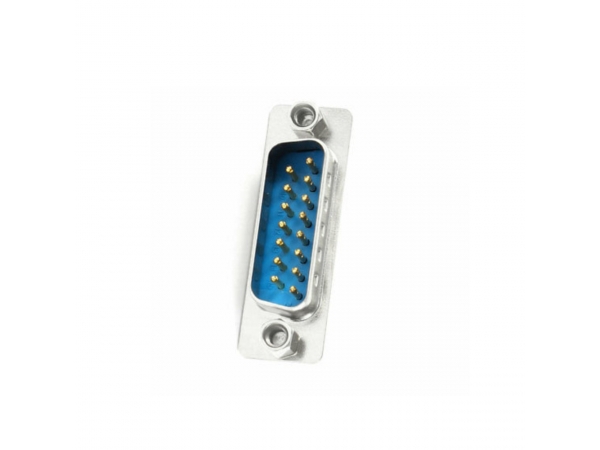

Connector Type: DB15 Male

Connector Shell: D-shaped metal shell for durability and easy identification.

Number of Pins: 15 pins, arranged in three rows (5 pins per row).

Contact Material: Gold-plated contacts for optimal signal transmission and corrosion resistance.

Termination: Solder cup or crimp termination options available for secure connections.

Shell Material: Zinc or steel alloy for robustness and electromagnetic interference (EMI) shielding.

Mounting Style: Available in various mounting styles, including board mount and cable mount options.

Voltage Rating: Typically rated for voltages up to 500V, ensuring compatibility with a wide range of applications.

Current Rating: Varied current ratings depending on the application, commonly ranging from 1A to 5A per pin.

Operating Temperature: -40°C to +85°C, providing reliable performance in diverse environmental conditions.

Gender: Male, designed for insertion into a female DB15 connector.

Application: Widely used in computer hardware, communication equipment, industrial automation, and other electronic devices.

Compatibility: Commonly used for VGA video, RS-232 serial communication, and other analog and digital signals.
