Description

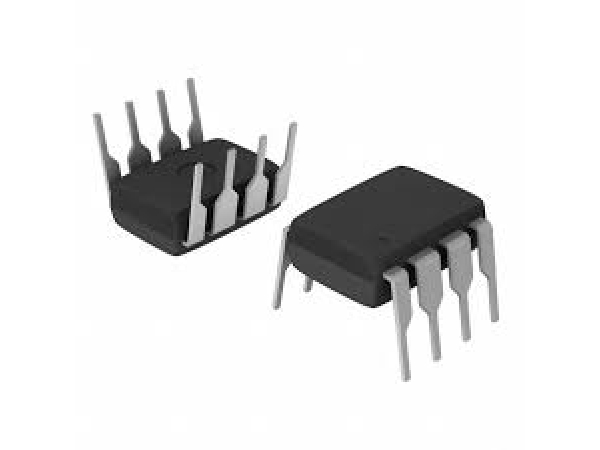

DS1232 MicroMonitor Chip FEATURES ? Halts and restarts an out-of-control microprocessor ? Holds microprocessor in check during power transients ? Automatically restarts microprocessor after power failure ? Monitors pushbutton for external override ? Accurate 5% or 10% microprocessor power supply monitoring ? Eliminates the need for discrete components ? Space-saving, 8-pin mini-DIP ? Optional 16-pin SOIC surface mount package ? Industrial temperature -40°C to +85°C available, designated N PIN ASSIGNMENT PBRST 1 8 VCC TD 2 TOL 3 7 ST 6 RST GND 4 5 RST DS1232 8-Pin DIP.
