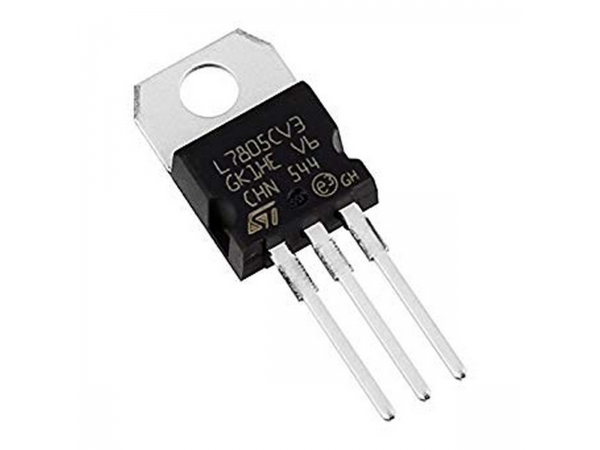

Description

7805 IC Rating

Input voltage range 7V- 35V

Current rating Ic = 1A

Output voltage range   VMax=5.2V ,VMin=4.8V

Pin Details of 7805 IC

Pin No.

Pin

Function

Description

1

INPUT

Input voltage (7V-35V)

In this pin of the IC positive unregulated voltage is given in regulation.

2

GROUND

Ground (0V)

In this pin where the ground is given. This pin is neutral for equally the input and output.

3

OUTPUT

Regulated output; 5V (4.8V-5.2V)

The output of the regulated 5V volt is taken out at this pin of the IC regulator.
