Description

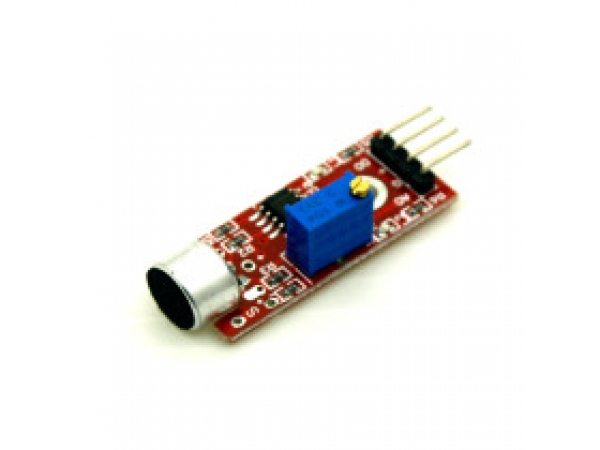

The Mic module best price lahore pakistan can be used for sound/audio detection, it comes with the basic components for you to get started. Supplying power and it is good to be use. Do take note that this sensor module can only detect the present of sound/audio, but not to differentiate the sound’s level. You can use it to detect sound and further determine whether human or animal is preset in a room, maybe for light activate with clap. By liking Our Facebook Page Embeded Studio , you can get special discount. Data Sheet of Mic Module can be also downloaded from the link

The is only digital output. Threshold can be adjusted with on board potentiometer for the digital output. Simple usage as it is digital output, so you will know whether there is sound or not.

Comes with a M3 mounting hole for ease of attaching it to any object. On board it has microphone, high sensitivity and commonly being used for sound detection. The module comes with power LED and status LED as indicator.

It can be interface with any microcontroller with digital input such as PIC, SK40C, SK28A, SKds40A, Arduino series for sound detection. Also, not to forget, interface with Relay module offer sound switch 🙂

Features:

Operating voltage: 3.3 to 5VDC

PIN: VCC = 5V, GND = 0V, DO = digital output from module

Sound detected, DO = LOW, on board LED is ON

No Sound detected, DO = HIGH, on board LED is OFF

Turn the on board potentiometer clockwise will make module sensitive to sound

Turn the on board potentiometer counter clockwise make the module less sensitive to sound

Mic Module are usually one per module 4.He writes the names on p. 5V Vcc pin plugs eat GND GND pin. The other two pins AO and DO pins are made of the connection pin number defined in the code section. A0 pin to analog, the DO pin is defined as the input pin reading digitally.

For sound detection Module has two outputs:

AO, analog output, real-time output voltage signal of the microphone

DO, when the sound intensity reaches a certain threshold, the output high and low signal

The threshold-sensitivity can be adjusted via potentiometer on the sensor

Connecting to the Arduino

Pin + to Arduino 5+

Pin – to Arduino –

Pin A0 to Arduino A0 (for analog program)

Pin D0 to Arduino 13 (for digital program)

Pin details

VCC = 3.3V to 5V DC

GND = Ground

DO = Digital Output
