Description

NPN Silicon Power Transistors

Collector-Emitter Voltage (VCEOsus): 400V (max)
Emitter Base Voltage: 9.0V (max)
Collector Current (cont): 1.5A (max)
Base Current (cont): 0.75A (max)
Emitter Current (cont): 2.25A (max)
Total Power Dissipation
– @ TA=25 Deg. C.: 1.4W (max)
– @ TC=25 Deg. C.: 40.0W (max)
DC Current Gain (IC=500mA, VCE=2.0V): 8 (min); 40 (max)
Frequency Transistion: 10.0MHz
Operating Temperature: -65 to 150 Deg. C.

Manufactured by: Micro Electronics

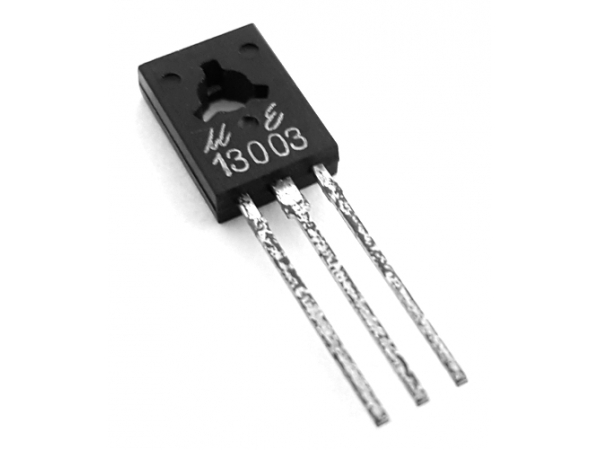

Part Number: MJE13003

For reference only, we are providing a datasheet for this part number. Please note that this datasheet is from a different manufacturer. West Florida Components assumes no liability for this information.
