Description

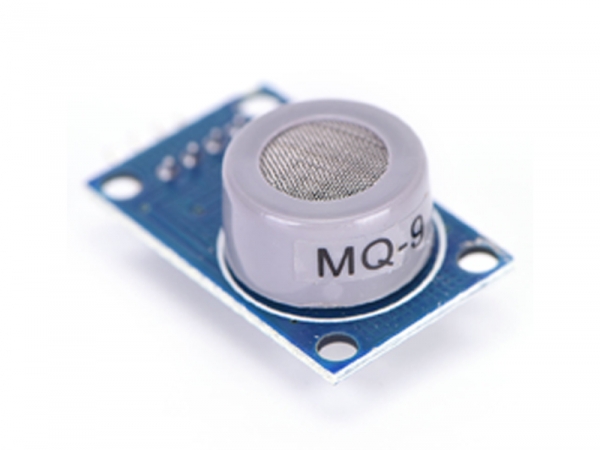

The MQ-9 Analog Gas Sensor has high sensitity to Carbon Monoxide, Methane and LPG. The sensor can be used to detect different gases containing MQ-9 gas sensor is SnO2, which has a lower conductivity in clean air. It makes detection by cycling high and low temperature, and detects CO when low temperature (heated by 1.5V). The sensor’s conductivity is higher along with the gas concentration rising. When temperature rises (heated by 5.0V), it detects Methane, Propane, combustible gas, etc  and cleans the other gases as it adsorbed under low temperature. MQ-9 usually pplied in domestic gas leakage detector, industrial gas detector, portable gas detector, etc.

Specifications:

Power supply: 5V

Interface type: Analog, Digital

Type: Semiconductor

Concentration:Good sensitivity to CO/Combustible gas

High sensitivity to Methane, Propane and CO

Long life and low cost

Size: 32x20mm

Sensor Type: Semiconductor

Standard Encapsulation: Bakelite

Detection Gas: CO and combustible gas

Loop Voltage: ≤10V DC

Load Resistance: Adjustable

Heater Resistance: 31Ω±3Ω(Room Tem.)

Heater consumption: ≤350mW
