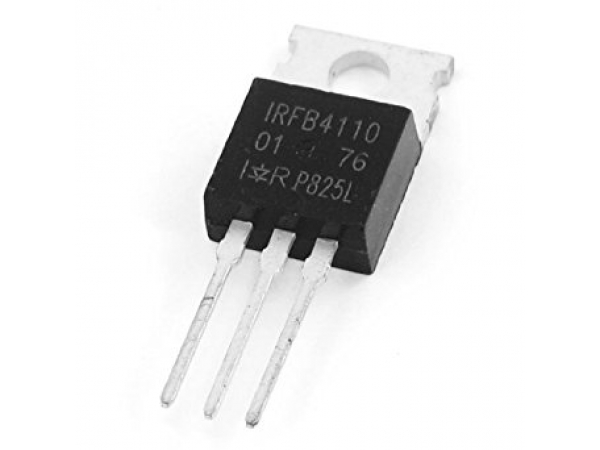

Description

Packaging

Tube

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

100V

Current – Continuous Drain (Id) @ 25°C

120A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

4.5mOhm @ 75A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

210nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

9620pF @ 50V

FET Feature

–

Power Dissipation (Max)

370W (Tc)

Operating Temperature

-55°C ~ 175°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

TO-220AB

Package / Case

TO-220-3
