Description

A low cost, high-performance microcontroller board built around Raspberry Pi’s very own chip – the RP2040.

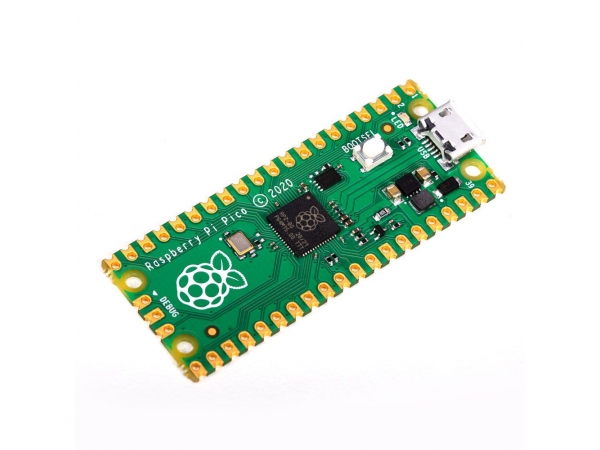

Raspberry Pi Pico is Raspberry Pi’s first microcontroller board, designed especially for physical computing. Microcontrollers are a different type of device than Single Board Computers (like the Raspberry Pi 4 and previous generations of Pi), they don’t run an operating system and they are typically programmed to do just one task – though that task can be pretty intricate and exciting! They’re perfect for experimenting with hardware and using as the brains of custom devices, machines and inventions.

It can be easily reprogrammed over USB from a Raspberry Pi or other computer using the C/C++ SDK or the official MicroPython port. The landing page is the best place to get started, or scroll down for links to the technical documentation for both the Raspberry Pi Pico microcontroller board and the RP2040 microcontroller chip.

We sell Raspberry Pi Pico in two flavours, unsoldered and with pre-soldered header pins. The unsoldered version comes without header pins so you’ll need to pick some up separately if you’re planning on plugging your Pico into into a breadboard or one of our Raspberry Pi Pico add-ons. Headers and other essentials like USB cables can be found under the extras tab!

Board Specifications

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces, built on silicon designed at Raspberry Pi. Key features include:

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz

264kB of SRAM, and 2MB of on-board Flash memory

Castellated module allows soldering direct to carrier boards

USB 1.1 Host and Device support

Low-power sleep and dormant modes

Drag & drop programming using mass storage over USB

26 multi-function GPIO pins

2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels

Accurate clock and timer on-chip

Temperature sensor

Accelerated floating point libraries on-chip

8×Programmable IO (PIO) state machines for custom peripheral support

Documentation

Documentation for the Raspberry Pi Pico board and the RP2040 microcontroller:

Raspberry Pi Pico Datasheet – An RP2040-based microcontroller board

RP2040 Datasheet – A microcontroller by Raspberry Pi

Hardware design with the RP2040 – Using the RP2040 microcontroller to build boards and products

Getting Started with Raspberry Pi Pico – C/C++ development with the Pico and other RP2040-based microcontroller boards

Pico C/C++ SDK – Libraries and tools for C/C++ development on the RP2040 microcontroller

Pico Python SDK – A MicroPython environment for the RP2040 microcontroller
