Description

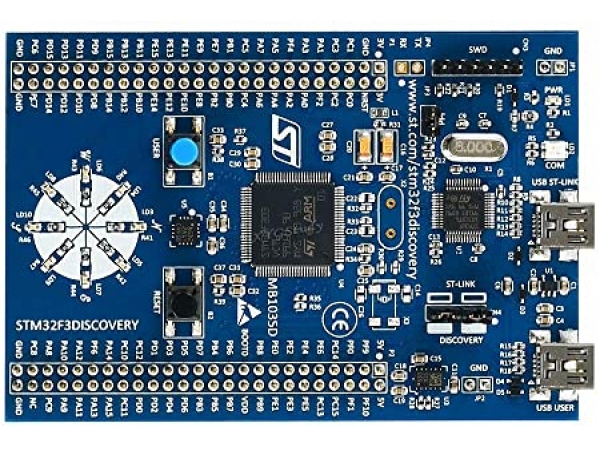

STM32F303VCT6 microcontroller featuring 256 KB Flash, 48 KB RAM in an LQFP100 package On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)

Board power supply: through USB bus or from an external 3 V or 5 V supply voltage External application power supply: 3 V and 5 V L3GD20, ST MEMs motion sensor, 3-axis digital output gyroscope LSM303DLHC, ST MEMs system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor

Ten LEDs: LD1 (red) for 3.3 V power on LD2 (red/green) for USB communication Eight user LEDS, LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)

Two pushbuttons (user and reset) USB USER with Mini-B connector Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
