Description

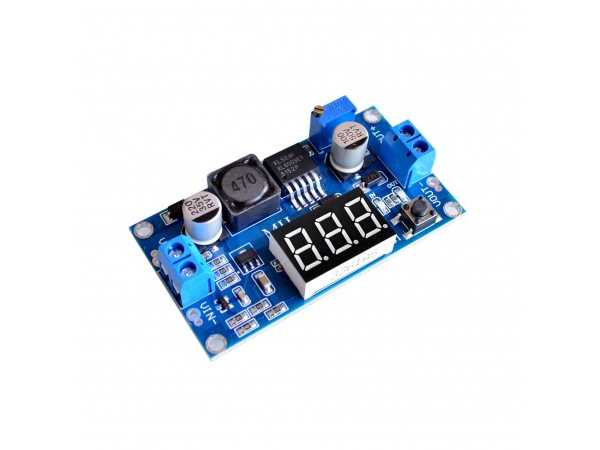

XTW6009 is a 4A switching current high-performance boost (BOOST) module.

This module uses the second-generation high-frequency switching technology XL6009E1 as the core chip, and its performance is far better than the first-generation technology LM2577.

Specification:

Ultra-wide input voltage 3V ~ 32V (boost voltage below 5V works normally, but the digital tube does not work), the best working voltage range is 5 ~ 32V

output voltage 5V ~ 35V

uilt-in 4A high-efficiency MOSFET switch tube, making the efficiency up to 94%

With power indicator

With voltmeter display and voltmeter can be self-calibrated. A more advanced voltage microprocessor is used, the error of the voltmeter is ± 0.05V, and the range is 0 ~ 35V.(Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)

Size: 60mm * 35mm * 13.5mm

Weight: 24g

Switching frequancy: 400KHz

Input current: 4A (maximum), no-load 18mA (5V input, 8V output, no-load is less than 18mA. The higher the voltage, the larger the no-load current.)

Output ripple: 50mV (higher voltage, larger current, larger ripple)

Working temperature: -40 ℃ ~ + 85 ℃
